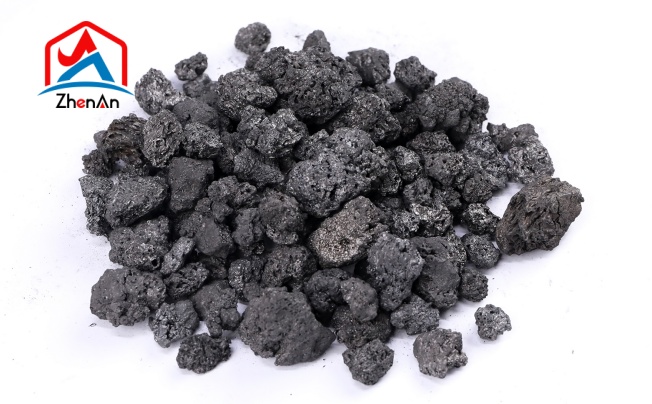

What Is Graphitized Petroleum Coke (GPC)?

Graphitized Petroleum Coke (GPC) is a petroleum-derived carbon material that has undergone graphitization treatment. Petroleum coke originates from petroleum refining processes, while graphitization changes the arrangement of carbon atoms through high-temperature processing.

In untreated petroleum coke, carbon structures are relatively disordered compared with crystalline graphite. During graphitization, portions of these structures become more ordered and develop graphite-like layered arrangements. The extent of this transformation depends on the starting material and processing conditions.

You may also encounter the name graphite petroleum coke. In the metallurgical carbon-additive market, this term commonly refers to graphitized petroleum coke, although product terminology should always be checked against the actual specification.

The terms GPC recarburizer and GPC carbon raiser describe its metallurgical function: adding carbon to molten iron or steel. They do not describe a separate source material.

GPC should not be confused with natural graphite, ordinary petroleum coke or every type of synthetic graphite powder. These materials can differ in origin, processing, carbon structure and chemical composition.

For foundry and steelmaking buyers, the important question is not simply whether a product is described as graphitized. You also need to know its actual fixed carbon content, impurity limits and particle-size distribution.

How Is Graphitized Petroleum Coke Produced?

The graphitized petroleum coke production process converts petroleum coke into a more graphitic carbon material through controlled thermal treatment. Industrial production routes differ according to the feedstock, furnace design and final product requirements.

The diagram below summarizes a representative route for granular GPC used as a metallurgical recarburizer.

1. Raw Material

Petroleum coke selection and preparation

→

2. Pretreatment

Calcination or other preparation when required

→

3. Graphitization

High-temperature carbon-structure transformation

→

4. Finishing

Cooling, crushing and screening as needed

→

5. Quality Check

Testing, grading and packaging

1. Raw Material Selection and Preparation

The process begins with petroleum coke, a carbon-rich material obtained during petroleum refining. The properties of the starting coke influence the composition and structure of the final GPC.

Important feedstock characteristics include sulfur, nitrogen, mineral impurities, volatile matter and the consistency of the carbon material.

Before graphitization, the petroleum coke may undergo sorting, crushing, screening or other preparation steps. Some production routes use calcined petroleum coke as the graphitization feedstock.

Calcination is a thermal treatment that primarily removes moisture and volatile components and changes the properties of the coke. It is not the same as full graphitization.

Different GPC production routes may begin with petroleum coke in different processing states. Therefore, calcination should not be presented as an identical, mandatory step in every manufacturing process.

2. High-Temperature Graphitization

Petroleum coke graphitization is the central transformation in GPC production. The carbon material is subjected to very high temperatures in a suitable graphitization furnace.

As temperature increases, disordered carbon regions can reorganize into more ordered graphite-like crystalline structures. The resulting degree of graphitization depends on the feedstock, furnace conditions and thermal treatment.

Published industrial and technical descriptions report graphitization conditions reaching approximately 2,500–3,000°C for various graphite production processes. However, this range is not a universal operating specification for every GPC producer.

Graphitization may also influence the sulfur, nitrogen and other impurity contents of petroleum coke. Some impurities can be released during thermal processing, but the amount removed depends on their chemical forms, the starting composition and the treatment conditions.

Important distinction: Graphitization does not guarantee that all impurities disappear or that every finished material reaches an identical carbon purity. The final chemical specification must be verified through testing.

3. Cooling, Crushing and Screening

After graphitization, the material is cooled according to the production system before further handling or processing.

Depending on the route, the treated carbon may require crushing, screening or grading to achieve the particle-size distribution specified for its intended use.

For metallurgical recarburizers, particle size is important because it affects material handling, furnace charging and the interaction between carbon particles and molten metal.

For example, a product described as 1–5 mm GPC should be evaluated not only by the nominal size range but also by the permitted amount of undersized fines and oversized particles.

Some routes perform particle-size preparation before graphitization, while others include additional crushing and screening afterward. The actual sequence should be confirmed from the manufacturer’s process description.

4. Final Testing and Packaging

The finished material is inspected to confirm that it meets the required chemical and physical specifications.

For GPC used in metallurgical applications, common inspection items include fixed carbon, sulfur, nitrogen, ash, volatile matter, moisture and particle-size distribution.

Where batch traceability is required, the inspection results should be associated with the relevant lot or batch identification.

Packaging should protect the material against contamination, moisture exposure and handling damage during storage and shipment. The actual bag type, net weight and labeling requirements depend on the supply agreement.

A product description explains the grade, but a Certificate of Analysis (COA) provides the test results associated with the specified material or batch, according to the report’s stated scope.

How Does the Production Process Affect GPC Quality?

The feedstock and graphitization conditions influence the carbon structure and chemical composition of GPC. However, you cannot determine all material properties from the production method alone.

When reviewing GPC properties, it is useful to distinguish between material characteristics, laboratory measurements and actual furnace performance.

Why Does Graphitization Not Guarantee a Fixed Carbon Recovery?

Graphitization changes the carbon structure, but actual carbon recovery is influenced by more than the structure of the recarburizer.

When GPC is introduced into molten metal, carbon transfer depends on temperature, composition, particle size, contact with the melt, charging sequence, slag conditions and available dissolution time.

Two melting trials using the same recarburizer may therefore produce different results if their operating conditions differ.

If you are evaluating a new GPC grade, compare the initial and final melt carbon contents, added recarburizer mass, other carbon inputs and relevant operating conditions.

This provides a more meaningful basis for material selection than assuming a fixed carbon absorption percentage from a product label.

Why Is GPC Used as a Recarburizer?

A graphitized petroleum coke recarburizer is used when molten iron or steel requires additional carbon to reach the target chemical composition.

In foundry melting, for example, steel scrap may be included in the charge to produce cast iron. Because steel scrap can contain less carbon than the intended final iron composition, a recarburizer may be required.

GPC provides carbon for this adjustment. Its chemical composition is especially relevant when the foundry also needs to control sulfur, nitrogen and other impurities introduced through the charge materials.

For ductile iron production, the sulfur contribution from carbon additives needs attention because sulfur affects the magnesium balance associated with nodularizing treatment.

In steelmaking, GPC may be used during suitable carbon-adjustment operations. The required grade and addition method depend on the steel specification and refining process.

In induction furnace melting, both the particle size and charging sequence should be considered. The correct addition practice should be established according to the furnace and charge conditions rather than assumed from general product information.

Practical takeaway: GPC supplies carbon, but the appropriate product grade and the amount required depend on the melt composition, impurity limits and expected carbon recovery.

What Is the Difference Between GPC and CPC?

Graphitized Petroleum Coke (GPC) and Calcined Petroleum Coke (CPC) both originate from petroleum coke, but they are distinguished by their processing history and carbon structure.

CPC is produced through calcination, while GPC undergoes graphitization treatment that promotes a more ordered graphite-like carbon structure.

The distinction between GPC vs CPC does not mean that every GPC product automatically has lower impurities or performs better in every furnace.

GPC may be preferred when a suitable graphitized grade meets strict carbon and impurity requirements. CPC may also be an appropriate choice if its actual chemical specification and operating performance satisfy the application.

Before comparing the two materials, request the relevant product specifications and evaluate them under comparable conditions.

What Should Buyers Check Before Selecting GPC?

Understanding the production process helps you interpret the properties of GPC. However, purchase approval should be based on the actual product specification and supporting documents.

Before selecting graphitized petroleum coke for a foundry or steel plant, confirm the following:

• Fixed Carbon: Required minimum content, test method and reporting basis.
• Sulfur: Maximum acceptable sulfur content for your metal grade.
• Nitrogen: Maximum permitted value, including the reporting unit and test method.
• Ash and Volatile Matter: Relevant limits for your application.
• Moisture: Acceptable moisture content and storage requirements.
• Particle Size: Required sieve range, fines limit and oversize tolerance.
• COA: Chemical test results, relevant batch number and inspection details.
• Application: Steelmaking, gray iron, ductile iron or another process.
• Trial Conditions: Furnace type, charge composition, addition method and measured carbon recovery.

When reviewing a GPC COA, check whether the reported values correspond to the exact grade and batch being offered. A generic product specification and an actual batch analysis do not provide the same level of information.

If you are planning a melting trial, provide your current recarburizer specification and the target melt chemistry. This makes it easier to compare materials on a consistent basis.

Frequently Asked Questions

Does GPC always have the same carbon and sulfur content?

No. Fixed carbon and sulfur levels depend on the feedstock, processing conditions and product grade. Graphitization alone does not guarantee identical chemical specifications. You should check the actual product standard and relevant batch analysis.

Are graphite petroleum coke and natural graphite the same material?

No. Graphite petroleum coke generally refers to petroleum-derived carbon that has undergone graphitization. Natural graphite is a naturally occurring mineral. They differ in origin, processing and potentially in chemical composition and particle characteristics.

Why can carbon recovery differ between melting trials?

Carbon recovery depends on the recarburizer, furnace conditions, initial melt composition, particle size, addition method and dissolution time. Changes in any of these factors can affect the amount of carbon incorporated into molten metal, even when the same GPC grade is used.

Technical References

The following references provide background on petroleum coke treatment, graphitization and metallurgical carbon addition. They describe published processes and research findings, not verified specifications of ZHENAN’s own GPC production equipment.

1.
   Royal Society of Chemistry — Graphite and Carbon Fibres
   .
   Background on calcined petroleum coke, graphitization and carbon structural transformation.
2.
   CN1834205A — Process for Producing Graphitized Petroleum Coke by an Acheson Graphitization Furnace
   .
   An example of a process specifically designed for petroleum-coke-derived recarburizer.
3.
   The History and Future Challenges of Calcined Petroleum Coke Production and Use in Aluminum Smelting
   .
   Technical background on petroleum coke calcination.
4.
   Toward a More Complete Quantitative Model of Recarburizer Dissolution in Liquid Iron
   .
   Research on factors affecting recarburizer dissolution and carbon recovery in molten iron.
5.
   Short-Range Promotion and Long-Range Inhibition Mechanism of Sulfur Release in High-Sulfur Petroleum Coke
   .
   Research on sulfur release and carbon structural changes during thermal processing.
